KS0108B Graphic LCD Interfacing

Intoduction
In this webpage, we describe how a display using the popular KS0108B controller can be driven by an 8051 or compatible microcontroller. Here we have used 128x64 pixels graphic display module with KS0108B display driver. It has the internal display RAM for storing the display data transferred from a 8 bit micro controller and generates the dot matrix Liquid crystal driving signals corresponding to stored data

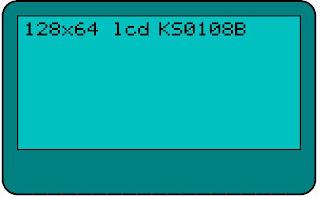

You can see the output is generated on the graphic LCD having driver KS0108 using 8051 microcontroller.
